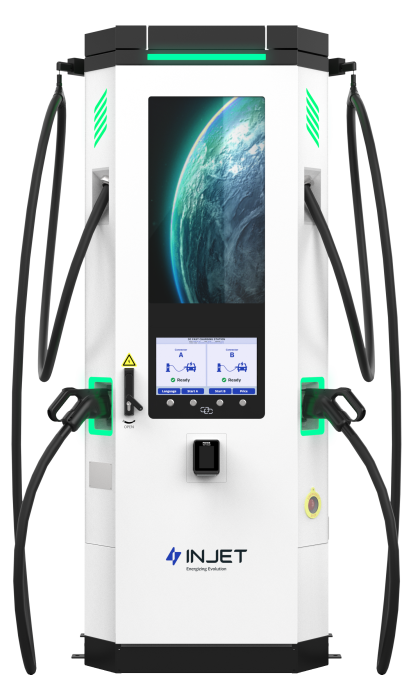

Injet HanHui 480

All-in-one DC Fast Charger

High-Power DC EV Charging Station, Engineered for Scalable Demands

Quote Now

Ultra-High Power: Supports up to 480 kW output for faster charging and reduced wait time.

Dynamic Power Distribution: 2nd Generation of PPC + Power Distribution Unit can achieve dynamic power distribution of 40-80kw to improve the power efficiency.

Smart Display + Ads Screen (Optional): 15.6” touchscreen ensures intuitive operation; optional 32” screen supports advertising or guidance.

Built-in PPC Controller: Integrated PPC simplifies installation, lowers TCO, and enhances scheduling efficiency.

International Certification Ready: Certified to meet global standards, ideal for cross-region deployment.

Product Features

Scalable Power

Scalable Power

    Upgradable, wild power range: 240kW – 320kW natural cooling, 320kW – 480kW liquid cooling.
    Maxium output current can reach 400A (natural cooling )/600A (liquid cooling) , CCS1, CCS2, NACS and GBT optional.
User-Friendly Interface

User-Friendly Interface

    3 Sets Of Light Strips
    32-inch advertising screen optional
    15.6-inch HMI with 4 operation buttons
    Multi-POS Brand Compliant
    Self-retracting arm can reach the max range of 4.5-4.8m
    Cable anti-theft design
High Reliability & Performance

High Reliability & Performance

    Fire extinguisher automatically detects and extinguishes internal fire
    Strong enclosure: Stainless steel, corrosion resistant grade of C4-M6
    Signal Input Integration: 4G + Wi-Fi + LAN integrated into a single router
    Adapt to extreme weather: the heater supports charger start at the temperature of -40℃
    Equipped with 40kW SiC module, a high-temperature version is optional
Future-proofed Protocol & Standards

Future-proofed Protocol & Standards

    Safety Certifications：(CE): CE, CB, UKCA；(NA): CSA, FCC/IC, Energy Star
    Metering：(CE):MID；(NA): CTEP/NTEP
    EMC：(CE): IEC 61851-21-2；(NA): FCC47 CFR Part 15B (Class A)
    Network Connections：(Optional)Dual4G/5G, Wi-Fi, Ethernet(10/100 Base-T)
    OCPP：1.6Jand 2.0.1
    Vehicle Communication Protocol：DINSPEC 70121, ISO 15118-2,IS0 15118-3,Plug &Charge
    RED Directive：ETSI EN 300 330, ETSI EN 301 489-1, ETSI EN 301489-3,ETSI 301489-52, ETSI EN 301 908-13, EN 50364 (RFID),IEC 62311: 2019, ENIEC 62311:2020 (4G test)
    Standard Warranty：2 years+ SLA Package
    Others :Site Level EMS Control
banner 1
banner 2
banner 3
banner 4

Why Your Charging Station Needs the Injet HanHui 480?

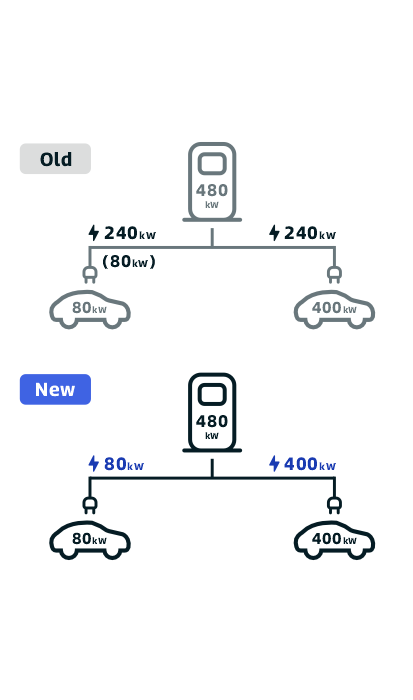

Traditional chargers often use fixed or round-robin power allocation. A small vehicle gets far more power than it needs, wasting capacity, while a heavy-duty truck waits in line because there isn't enough power left for it. The result? Even with a high rated output, your actual effective throughput takes a big hit – and during peak hours, you're losing real money every single hour.

The Injet HanHui 480 solves this with intelligent dynamic power distribution. It precisely allocates power from a shared pool: exactly as much as each vehicle needs, no waste, no idle capacity. With the same 480kW setup, you unlock significantly higher charging volume and revenue during peak hours, while reducing module redundancy and heat loss. For fleet operators, that means faster turnover, more reliable operations, and a clear, calculable return on investment.

BUY NOW
微信图片_20260509140212_233_1

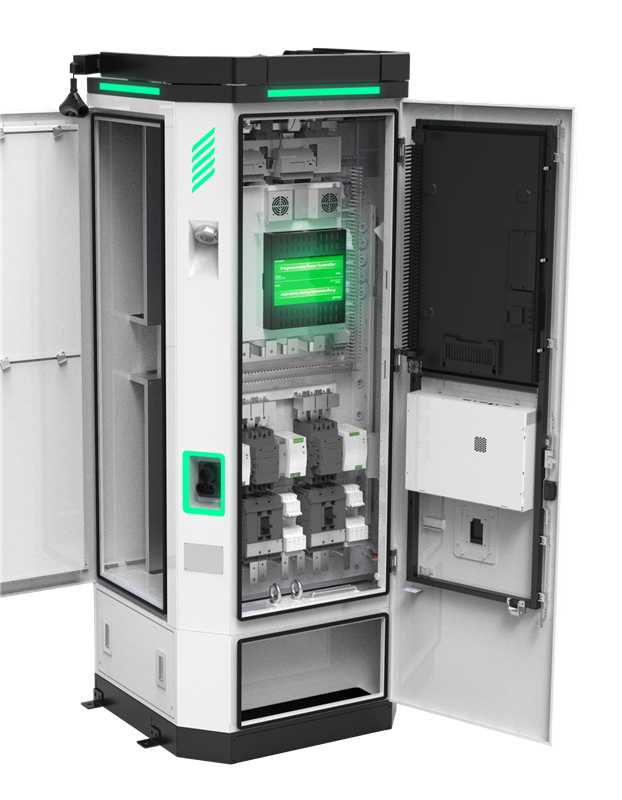

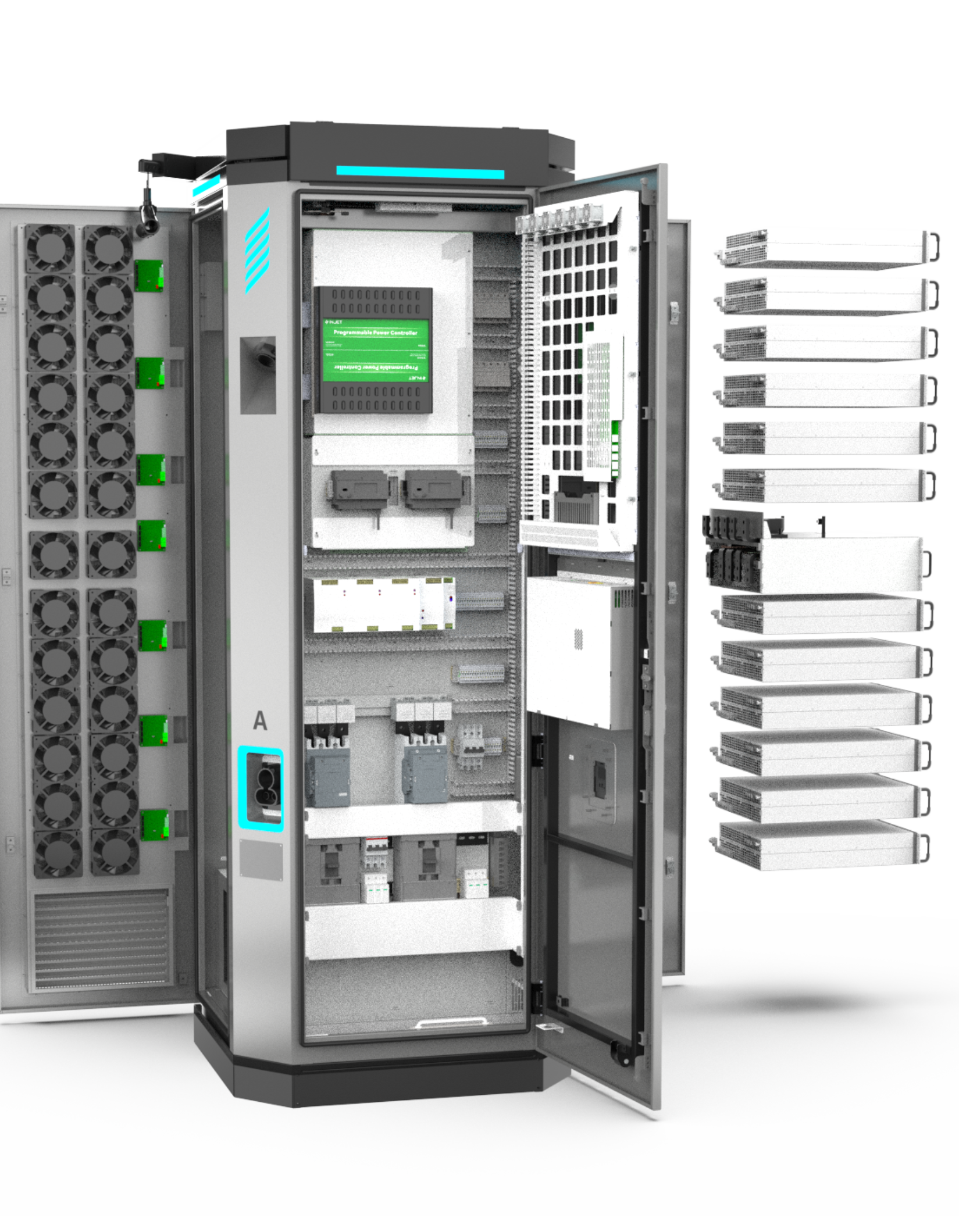

PPC Inside: The Intelligent Core of Injet HanHui 480

Programmable Power Controller (PPC) is the HEART of njet HanHui 480 chargers. Developed in-house by Injet, PPC integrates complex control logic and power modules into a compact, unified system. This innovation simplifies production, stabilizes performance, and makes maintenance remarkably efficient. PPC has received US Patent Granted and Germany Utility Registered, and is widely deployed to help customers enhance operational efficiency.

左侧大图

  • Simplified Manufacturing & Assembly

    Simplified Manufacturing & Assembly

    1) Reduced cabling complexity: from nearly 300 cables to just 83, cutting potential failure points.
    2) Unique port sizing ensures error-free installation with only 5 minutes of training needed.

  • Stable & Durable Performance

    Stable & Durable Performance

    1) Minimizes exposure of delicate electronics to air, enhancing long-term durability.
    2) Integrated design improves overall system reliability and reduces environmental risks during operation.

  • Easy & Cost-Effective Maintenance

    Easy & Cost-Effective Maintenance

    1) Remote diagnostics via error codes help locate faults without needing a second on-site visit.
    2) Repair time reduced to 2~4 hours—versus 2–10 days with conventional solutions.
    3) Faulty modules can be sent to local Injet repair centers for reuse, saving on component and component costs.

Built for High-Usage Charging Scenarios

右侧图1 右侧图3

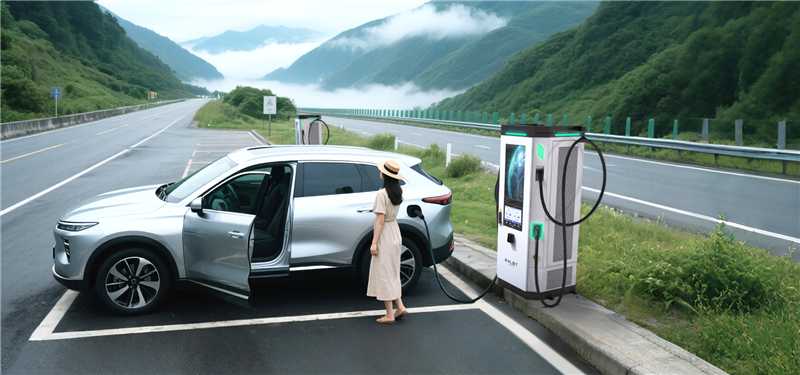

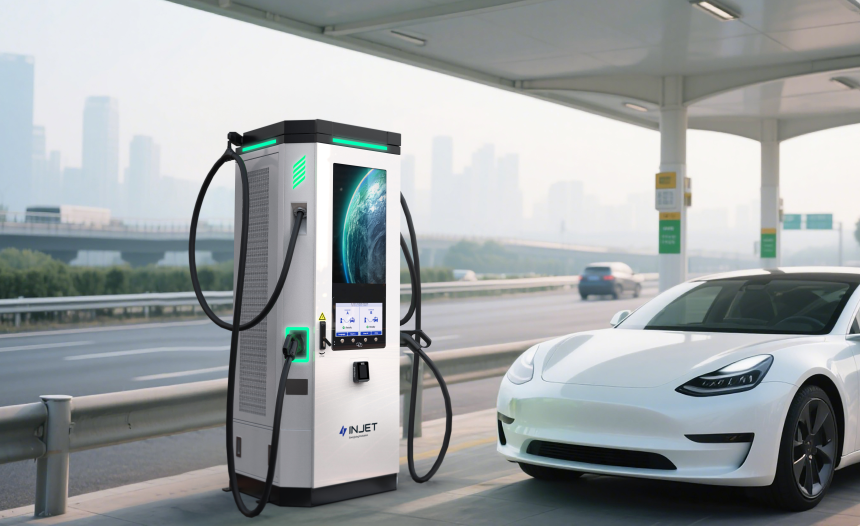

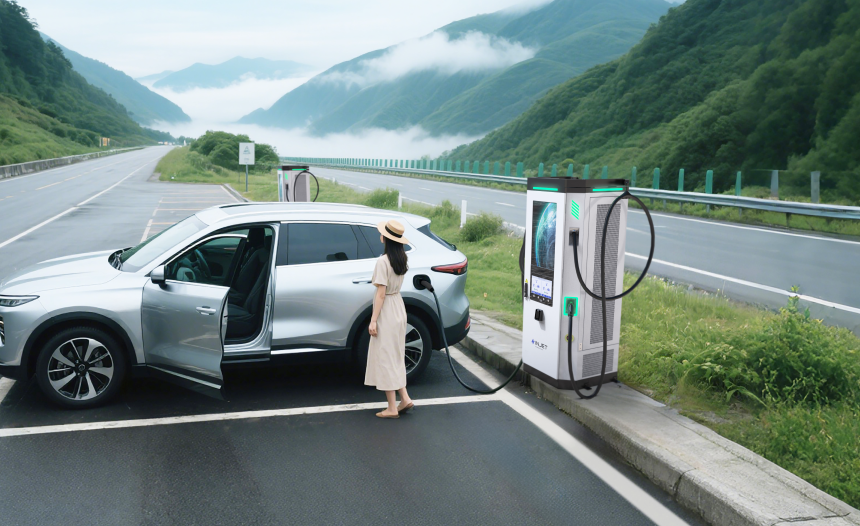

  • High-Power Charging for Highway Stops

    High-Power Charging for Highway Stops

    Designed for high-traffic locations, Injet HanHui 480 supports ultra-fast top-ups with up to 480 kW output. The intuitive HD touchscreen and optional ad screen enhance user experience and commercial value—ideal for highway rest areas and transit hubs.

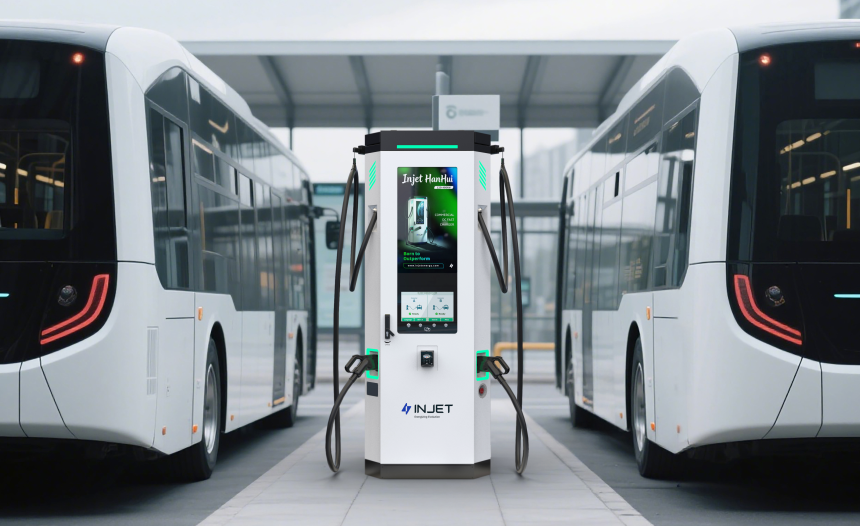

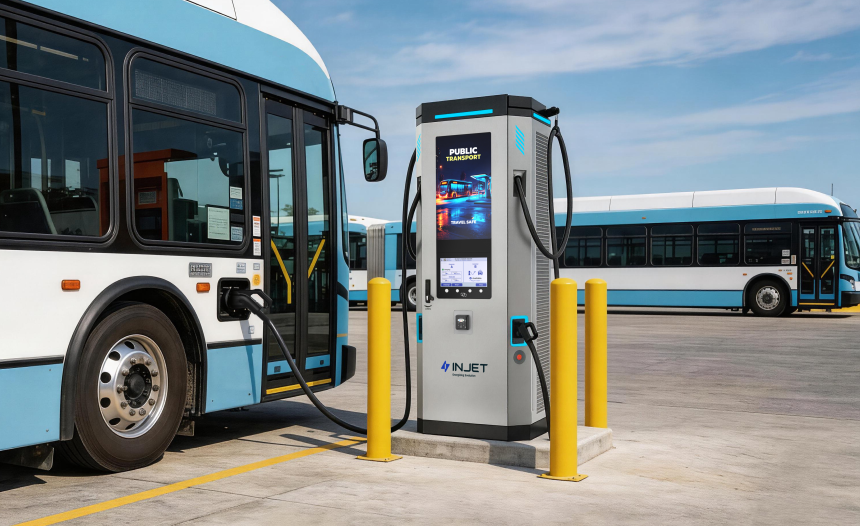

  • Reliable Power for Fleet Depots

    Reliable Power for Fleet Depots

    Injet HanHui 480’s modular design enables seamless power upgrades, while multi-unit deployment supports large-scale fleet charging. With industrial-grade components and smart management features, it ensures efficient, round-the-clock operation in logistics hubs and depots.

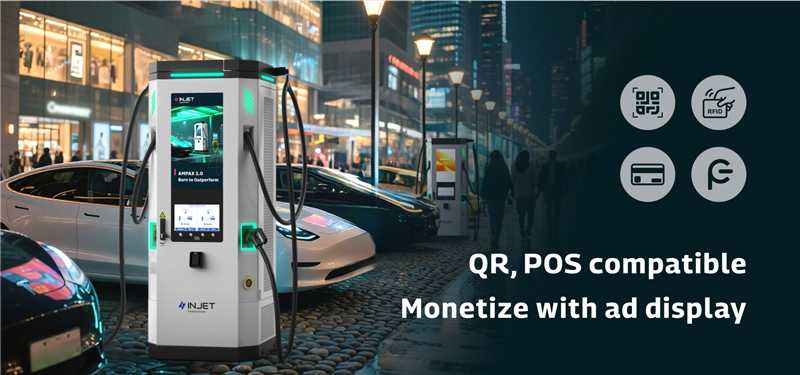

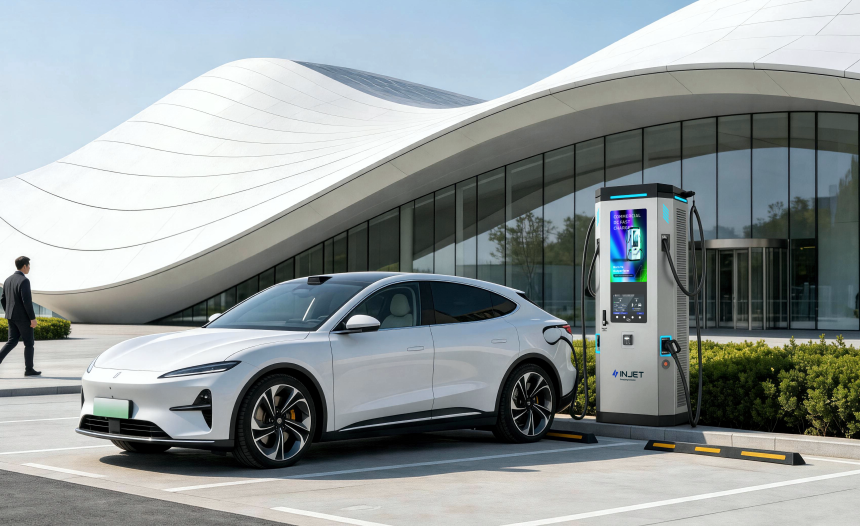

  • Convenient Charging for Destination Sites

    Convenient Charging for Destination Sites

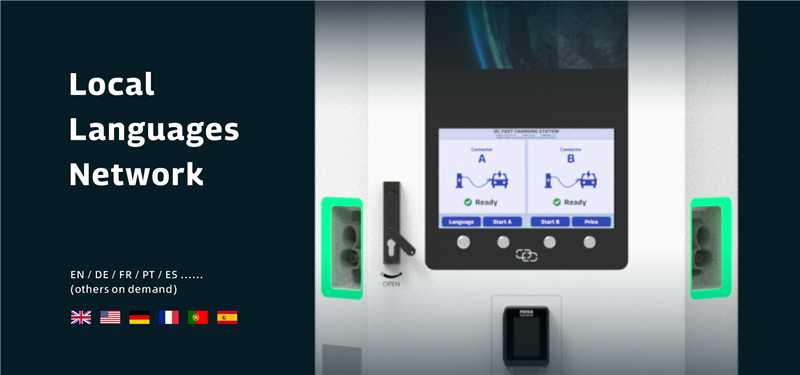

    Ideal for malls, hotels, and office complexes, Injet HanHui 480 offers universal EV compatibility, multilingual displays, and both QR and POS payment options. Built-in enterprise-grade data management ensures seamless operation and revenue optimization.

Injet Hanhui 480kW DC Fast Charger: Frequently Asked Questions

Q1: What makes the Injet Hanhui 480 different from the standard Ampax series?

A: The Injet Hanhui 480 is our ultra-high-power flagship, boosting the maximum output to 480kW (compared to 320kW for the standard version). It is specifically designed for high-traffic locations requiring the fastest possible turnaround, such as heavy-duty truck stops and bus depots. Additionally, the Injet Hanhui 480 version features a large integrated advertising screen for additional revenue streams.

Q2: Does the Injet Hanhui 480 support NACS and other global connector standards?

A: Yes, one of the Injet Hanhui 480's greatest strengths is its flexibility. We support customized combinations of CCS1, CCS2, GBT, and NACS (Tesla standard) connectors. This multi-standard compatibility ensures your investment is future-proof and can serve any electric vehicle on the road today, regardless of the region or vehicle brand.

Q3: How can I monetize my charging site with the Injet Hanhui 480’s advertising screen?

A: The Injet Hanhui 480 is not just a charger; it's a media hub. The high-definition screen allows owners to display third-party advertisements, local business promotions, or corporate branding. This creates a secondary revenue stream that significantly shortens your ROI period for commercial EV charging infrastructure.

Q4: Is the 480kW power output safe for all electric vehicles?

A: Absolutely. Our intelligent power distribution system automatically detects the vehicle's maximum charging rate and adjusts the output accordingly. Even though it can deliver up to 480kW, it will safely charge smaller vehicles at their optimal speeds, protecting battery health while maintaining high efficiency.

Q5: Can the Injet Hanhui 480 withstand extreme weather during outdoor operation?

A: Like the standard series, the Injet Hanhui 480 is built to industrial standards with high-grade protection. It is designed to operate reliably in a wide temperature range, making it the perfect all-weather DC fast charger for diverse climates. Its robust casing and internal cooling system ensure stable performance even under maximum load in summer heat.

Check More Products from Injet

Injet Ultra

injet ultra spilt ev charging system

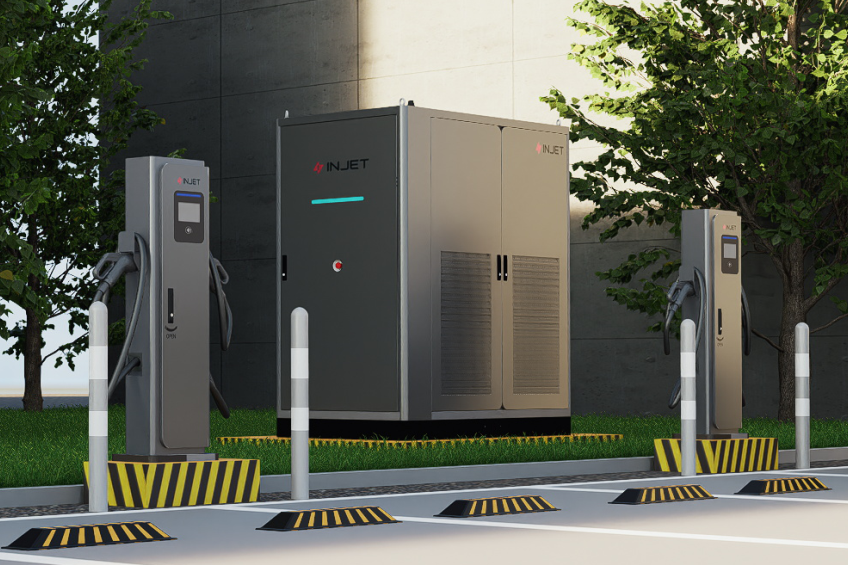

The Injet Ultra is a split EV charging system supporting 800kW ultra-fast DC charging. It works with up to 8 liquid-cooled dispensers, flexibly distributing power for EVs—ideal for fleet charging.
